RAI DAB+ feed from 5 West

[jsda30]

hi everybody!
someone have the services id for the mux dab radios obervayern south (7a) at 7e?
i have the fak channel and now im creating the userbouquet but i dont have the service id...
because always error whe i used telnet for get the service id channel radio like other mux of bavarian radios...



[Satfaca]

Do you mean this?



[satesco]

I tried the DAB WDR stream under Windows. I could view it with PotPlayer and play it at 19.2E(11603 V) and 23.5E(12644 V,2200).
Unfortunately, no matter how many players I tried, I couldn't listen to it.
And with the Ayecka device, the same thing happens.
That's why I provide the recorded TS files for those who know how to decode these streams; you might say they are "protected" for the uninitiated.
You can download them here.



[jsda30]

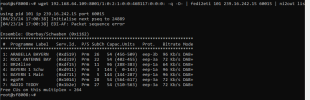

Do you mean this?

View attachment 155509

yes but from oberbayen south



[Satfaca]

Same here, must be some fault in the stream.



[jsda30]

Same here, must be some fault in the stream.

now working fine



[Adam792]

The 9A mux on 19.2°E 11604V /23.5°E 12645V is now carrying actual programmes again -



WDR Ruhrgebiet is just a tone but the other services are carrying WDR2 and WDR4 programming as signalled.



[satesco]

Thanks, @Adam792, Indeed, WDR 2 works on 11604 V; only Ruhrgebiet has test sound.



[satesco]

I hope this is not a false alarm, but the RAI MIS(including RAI Mux DAB+) on 11013 V,35300,2/3,8PSK has left Eutelsat 5West(?). There is no signal trace on this frequency,
What do you find in your area?
Here is what transponders are active at 5.0W in my area atm.



[cirio70]

No, you're right. 11013 V was turned off last week.
All the streams are now on 12563 V same parameters.



[satesco]

No, you're right. 11013 V was turned off last week.
All the streams are now on 12563 V same parameters.

Here they are:12564 V,35300,2/3,8PSK,PLS-Root 16416-Mis 1,3,5,11



[satesco]

5.0W_12564 V,35300,2/3,8PSK, Root 16416-Stream 11 - RAI Mux DAB+

DAB+ RAI (0x5001)
0 : Rai Radio1 (0x5201) Pri subch= 1 start= 0 CUs= 84 PL=eep-3a bitrate=112 DAB+
1 : Rai Radio2 (0x5202) Pri subch= 2 start= 84 CUs= 84 PL=eep-3a bitrate=112 DAB+
2 : Rai Radio3 (0x5203) Pri subch= 3 start=168 CUs= 84 PL=eep-3a bitrate=112 DAB+
3 : Rai GrParlamento (0x5206) Pri subch= 4 start=252 CUs= 42 PL=eep-3a bitrate=56 DAB+
4 : Rai Isoradio (0x5209) Pri subch= 5 start=294 CUs= 78 PL=eep-3a bitrate=104 DAB+
5 : RaiTuttaItaliana (0x5207) Pri subch= 6 start=372 CUs= 78 PL=eep-3a bitrate=104 DAB+
6 : Rai R Classica (0x5205) Pri subch= 7 start=450 CUs= 78 PL=eep-3a bitrate=104 DAB+
7 : Rai Radio1 Sport (0x520f) Pri subch= 8 start=528 CUs= 48 PL=eep-3a bitrate=64 DAB+
8 : Rai R Techete' (0x52f1) Pri subch=10 start=576 CUs= 66 PL=eep-3a bitrate=88 DAB+
9 : RaiR Live Napoli (0x52f2) Pri subch=11 start=642 CUs= 78 PL=eep-3a bitrate=104 DAB+
10 : Rai Radio Kids (0x52f3) Pri subch=12 start=720 CUs= 66 PL=eep-3a bitrate=88 DAB+
11 : No Name Radio (0x520a) Pri subch=13 start=786 CUs= 78 PL=eep-3a bitrate=104 DAB+



[satesco]

5.0W_12564 V,35300,2/3,8PSK,Mis 11_RAI Mux DAB+ stream with neumoDVB



[Solleville012]

5.0W_12564 V,35300,2/3,8PSK,Mis 11_RAI Mux DAB+ stream with neumoDVB

5.0W_12564 V,35300,2/3,8PSK,Mis 11_RAI Mux DAB+ stream with neumoDVB

RAI DAB+ 5W Is it not in this "Cusano Italy" radio?



[Solleville012]

Nice find! It's a copy of 23.5°E 12645 V 2200 (19.2°E 11604 V 2200), with the two WDR DAB multiplexes -

tune-s2 11604 V 2200 -system DVB-S -lnb UNIVERSAL -adapter 1
status Locked | signal -31.8 dBm | snr 15.0 dB | ber 0 | FE_HAS_LOCK
Closing frontend ...

 dvbstream -c 1 -o 3000 | fedi2eti 3000 228.10.1.5 10010 | ni2out --list
using pid 3000 ip 228.10.1.5 port 10010
dvbstream v0.7.01 - (C) Dave Chapman 2001-2004
Released under the GPL.
Latest version available from http://dvbtools.sourceforge.net/
dvbstream will stop after -1 seconds (71582788 minutes)
Output to stdout
Streaming 2 streams
[04/21/24 07:16:53] Initialise next pseq to 35191
[04/21/24 07:16:53] EDI-AF: Packet sequence error
Radio fuer NRW   (0x10ec)
 0 : WDR 2 OWL        (0xd592) Pri subch=18 start=594 CUs= 54 PL=eep-3a bitrate=72 DAB+
 1 : WDR 2 RHEIN-RUHR (0xd792) Pri subch=16 start=486 CUs= 54 PL=eep-3a bitrate=72 DAB+
 2 : WDR 2 RUHRGEBIET (0xd692) Pri subch=17 start=540 CUs= 54 PL=eep-3a bitrate=72 DAB+
 3 : WDR Maus         (0xdf95) Pri subch= 2 start= 54 CUs= 48 PL=eep-3a bitrate=64 DAB+
 4 : WDRcosmo         (0xd496) Pri subch= 5 start=204 CUs= 48 PL=eep-3a bitrate=64 DAB+
 5 : 1LIVE diGGi      (0xdf91) Pri subch= 3 start=102 CUs= 54 PL=eep-3a bitrate=72 DAB+
 6 : WDR 4            (0xd394) Pri subch=14 start=360 CUs= 54 PL=eep-3a bitrate=72 DAB+
 7 : WDR 2 RHEINLAND  (0xd392) Pri subch= 7 start=288 CUs= 54 PL=eep-3a bitrate=72 DAB+
 8 : 1LIVE            (0xd391) Pri subch= 1 start=  0 CUs= 54 PL=eep-3a bitrate=72 DAB+
 9 : WDR 3            (0xd393) Pri subch=15 start=414 CUs= 72 PL=eep-3a bitrate=96 DAB+
10 : WDR 5            (0xd395) Pri subch= 4 start=156 CUs= 48 PL=eep-3a bitrate=64 DAB+
11 : WDR Event        (0xdf96) Pri subch= 6 start=252 CUs= 36 PL=eep-3a bitrate=48 DAB+
12 : WDR 2 BERG.-LAND (0xdc92) Pri subch=22 start=810 CUs= 54 PL=eep-3a bitrate=72 DAB+
13 : WDR 2 S�DWESTF   (0xdb92) Pri subch=21 start=756 CUs= 54 PL=eep-3a bitrate=72 DAB+
14 : WDR 2 M�NSTERL   (0xda92) Pri subch=20 start=702 CUs= 54 PL=eep-3a bitrate=72 DAB+
15 : WDR 2 AACHEN     (0xd492) Pri subch=19 start=648 CUs= 54 PL=eep-3a bitrate=72 DAB+

dvbstream -c 1 -o 3000 | fedi2eti 3000 228.10.2.5 10010 | ni2out --list
using pid 3000 ip 228.10.2.5 port 10010
dvbstream v0.7.01 - (C) Dave Chapman 2001-2004
Released under the GPL.
Latest version available from http://dvbtools.sourceforge.net/
dvbstream will stop after -1 seconds (71582788 minutes)
Output to stdout
Streaming 2 streams
[04/21/24 07:18:56] Initialise next pseq to 40317
[04/21/24 07:18:56] EDI-AF: Packet sequence error
K9A              (0x10fa)
 0 : Test 6           (0xd494) Pri subch= 6 start=440 CUs= 88 PL=eep-2a bitrate=88 DAB+
 1 : Test 8           (0xda94) Pri subch= 8 start=616 CUs= 88 PL=eep-2a bitrate=88 DAB+
 2 : Test 2           (0xd692) Pri subch= 2 start= 88 CUs= 88 PL=eep-2a bitrate=88 DAB+
 3 : Test 1           (0xd392) Pri subch= 1 start=  0 CUs= 88 PL=eep-2a bitrate=88 DAB+
 4 : Test 9           (0xd694) Pri subch= 9 start=704 CUs= 88 PL=eep-2a bitrate=88 DAB+
 5 : Test 3           (0xd492) Pri subch= 3 start=176 CUs= 88 PL=eep-2a bitrate=88 DAB+
 6 : Test 4           (0xdc92) Pri subch= 4 start=264 CUs= 88 PL=eep-2a bitrate=88 DAB+
 7 : Test 7           (0xd394) Pri subch= 7 start=528 CUs= 88 PL=eep-2a bitrate=88 DAB+
 8 : Test 5           (0xda92) Pri subch= 5 start=352 CUs= 88 PL=eep-2a bitrate=88 DAB+

K9A with the Test entries is due to launch terrestrially soon with additional regional versions of WDR2 and WDR4.

This is Astra 19,2E 11604V DAB+ working Enigma 2??



[cirio70]

RAI DAB+ 5W Is it not in this "Cusano Italy" radio?

Radio Cusano Campus is no longer transmitted on RAI mux.
You can find it on HotBird 13E 11179H 27500 2/3



[satesco]

RAI DAB+ 5W Is it not in this "Cusano Italy" radio?

I'm unsure about that, but it's probably as you say.

@cirio70 ,
I have no way of knowing if this radio is active or not. I only just now found out why our colleague asked about this station.
I only discovered that the DAB+ Rai listing is still on this radio station's page.



[cirio70]

Radio Cusano Campus was part of RAI Mux until may 2023.
Today is present in Italy in various local DAB muxes, in FM and on HotBird.



[EnoSat]

RAI DAB+ 5W Is it not in this "Cusano Italy" radio?

Radio Cusano went from a national mux to a local one ( SpaceDAB )

https://www.litaliaindigitale.it/radio-dab/mux-spacedab-lombardia/



[EnoSat]
